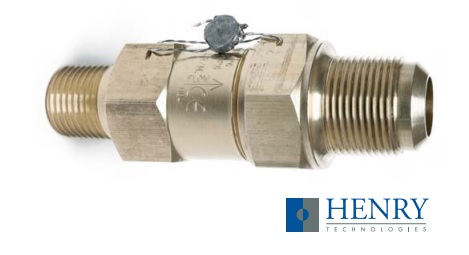

HENRY GROUP Pressure Relief Valve
For the product: "HENRY GROUP Pressure Relief Valve"
Call us: +370 523 11762
Protect system components such as receivers, heat exchangers and vessels from dangerous overpressure
Max Working Pressure:130 Barg (1885 PSIg)
Operating Temperature Range:-40°C to +150°C (-40°F to +302°F)
Refrigerant Compatibility: CO2, HCFC, HFC, HFO and R290 where materially compatible
Size:Inlet: 3/4″ Outlet: 1″
Product Cetification: ASME-UV, CE and UKCA
Features
Maximum pressure setting of 130 Barg
Set pressure tolerance = +/-3%
Maximum overpressure = 10%
Proven safe design
Precision machined parts for maximum reliability
Compact design
Blow-Out proof seal design
Tamper proof
In accordance with EN ISO 4126-1, the 5701AX valve reseats within 15% of set pressure following a discharge
TFM second generation PTFE seal
